OIDC setup guide

This is the hands-on companion to SSO (the architecture overview). It walks through adding a real provider, signing in through it, and approving the resulting user — using real screenshots captured against a Generic OIDC provider configured against Google, plus the JWT claim trace that applies to every provider identically.

• You need the Organizations administrator role for the target organization (or system admin).
• The host running the SSO Gateway needs outbound HTTPS to the IdP’s discovery, authorization, token, and JWKS endpoints.
• Register the CYPEX callback URL on the IdP side before you save the provider — the default is {app-origin}/auth/{providerType}/callback (e.g. http://localhost:4000/auth/oidc/callback in dev), and the gateway rejects a login whose stored callbackUrl doesn’t match the IdP’s registered redirect URI byte-for-byte.

Under Authentication → SSO Providers → Add provider:

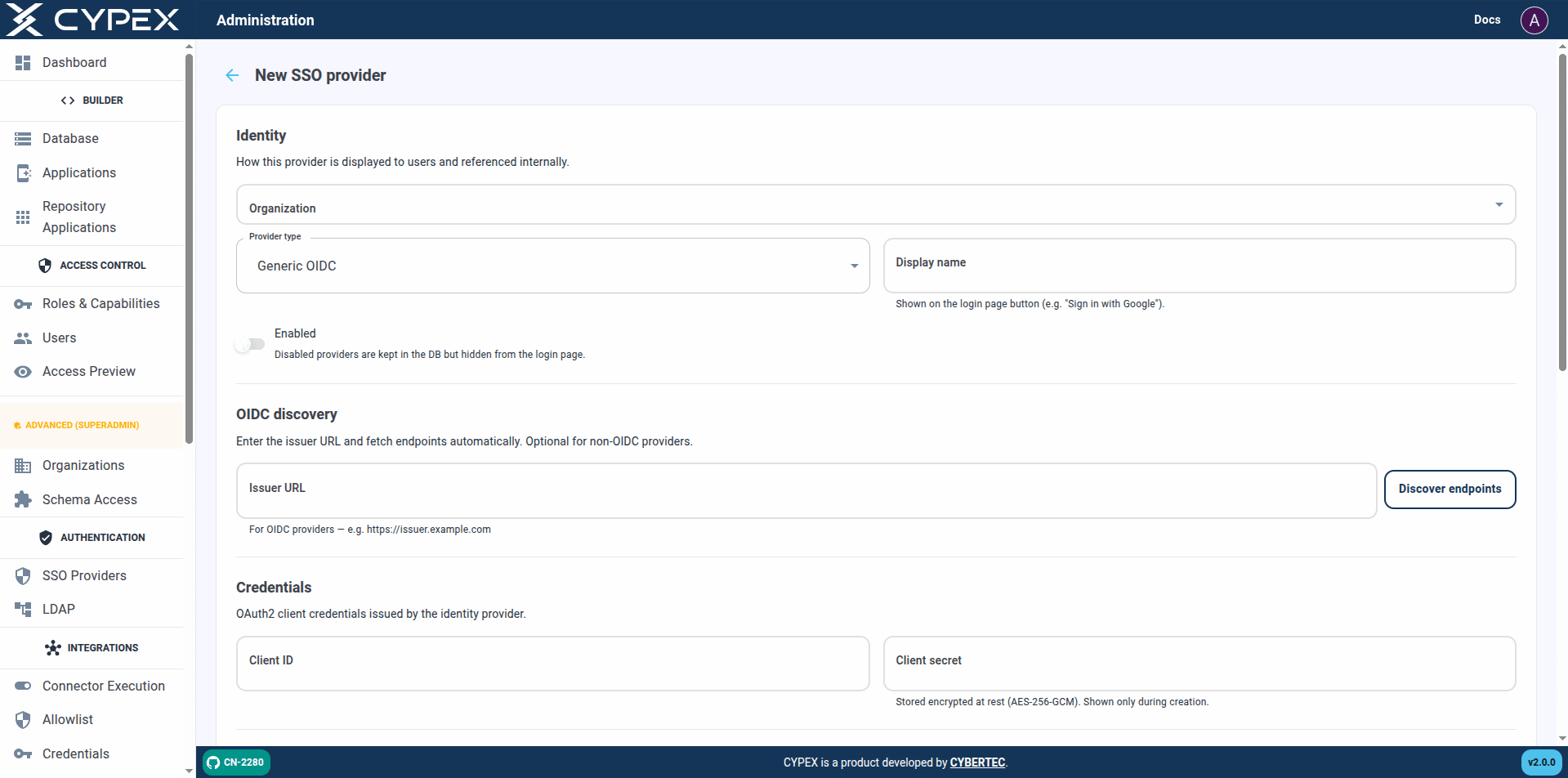

New SSO provider — Identity and OIDC discovery

Organization, Provider type, and Display name under Identity; Issuer URL and Discover endpoints under OIDC discovery.

Three fields matter most:

• Organization — which tenant this provider belongs to. A provider is always scoped to exactly one organization.
• Provider type — the dropdown offers five: Generic OIDC, Generic OAuth2, Google, GitHub, Microsoft. Google and Microsoft are first-class shortcuts; every other spec-compliant IdP — Azure AD (if you don’t use the Microsoft shortcut), Keycloak, JumpCloud, Auth0 — goes through Generic OIDC. Each type has its own strategy in the SSO Gateway, so the five shipped types cover their vendors’ quirks; adding a further spec-compliant IdP is configuration only, through Generic OIDC, with every endpoint read from the row you’re creating — no new code to write or deploy.
• Issuer URL — paste this and click Discover endpoints to auto-fill Authorization URL, Token URL, User info URL, JWKS URL, and End session URL from the IdP’s .well-known/openid-configuration document. All fields it fills stay editable, so you can override any single endpoint without losing the rest.

Known-good issuer URLs for Generic OIDC — this is the exact form used for the screenshots below, pointed at Google instead of the Google shortcut, to keep the walkthrough provider-agnostic:

The login button’s icon is derived independently from the Issuer URL’s hostname (accounts.google.com, *.microsoftonline.com, *.jumpcloud.com all pattern-match to a known brand), not from which of the five dropdown options was picked — a Generic OIDC provider pointed at Google’s issuer still renders the Google “G” icon, exactly as in the screenshots below.

Scroll down for the endpoints, scope, callback URL, and identity-linking policy:

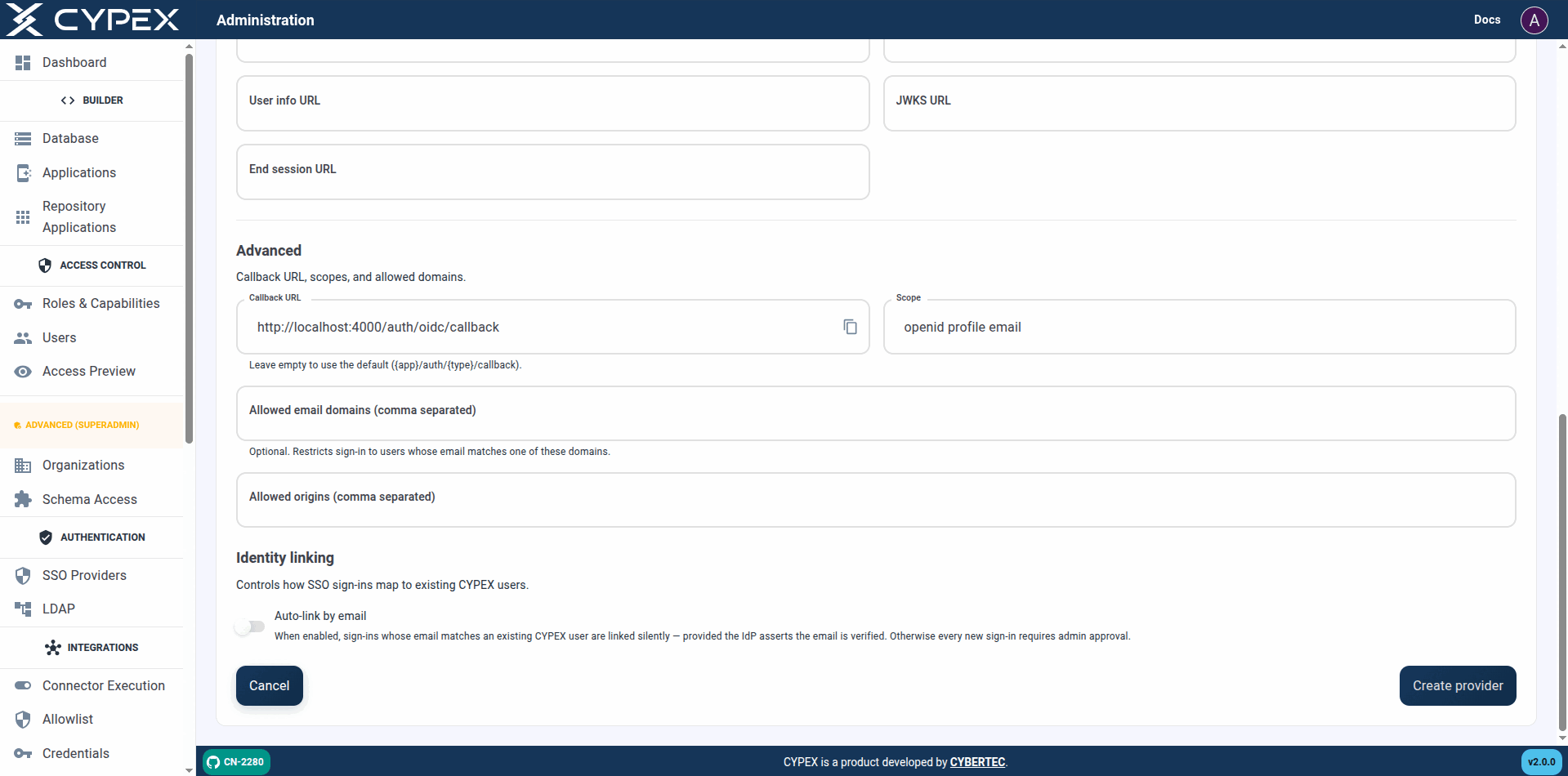

New SSO provider — Endpoints and Advanced

Callback URL defaults to the app-origin pattern above; Scope defaults to `openid profile email`. Auto-link by email is off by default.

Auto-link by email decides what happens on a brand-new identity’s first successful login:

• On — if the IdP asserts a verified email that matches an existing CYPEX user, the SSO identity is linked to that user silently, no admin action needed.
• Off (the default) — every new identity lands in the pending-approval queue regardless of email match, until an admin explicitly approves it (Step 4 below).

A real filled-in example — Generic OIDC against Google, organization smi_org_admin:

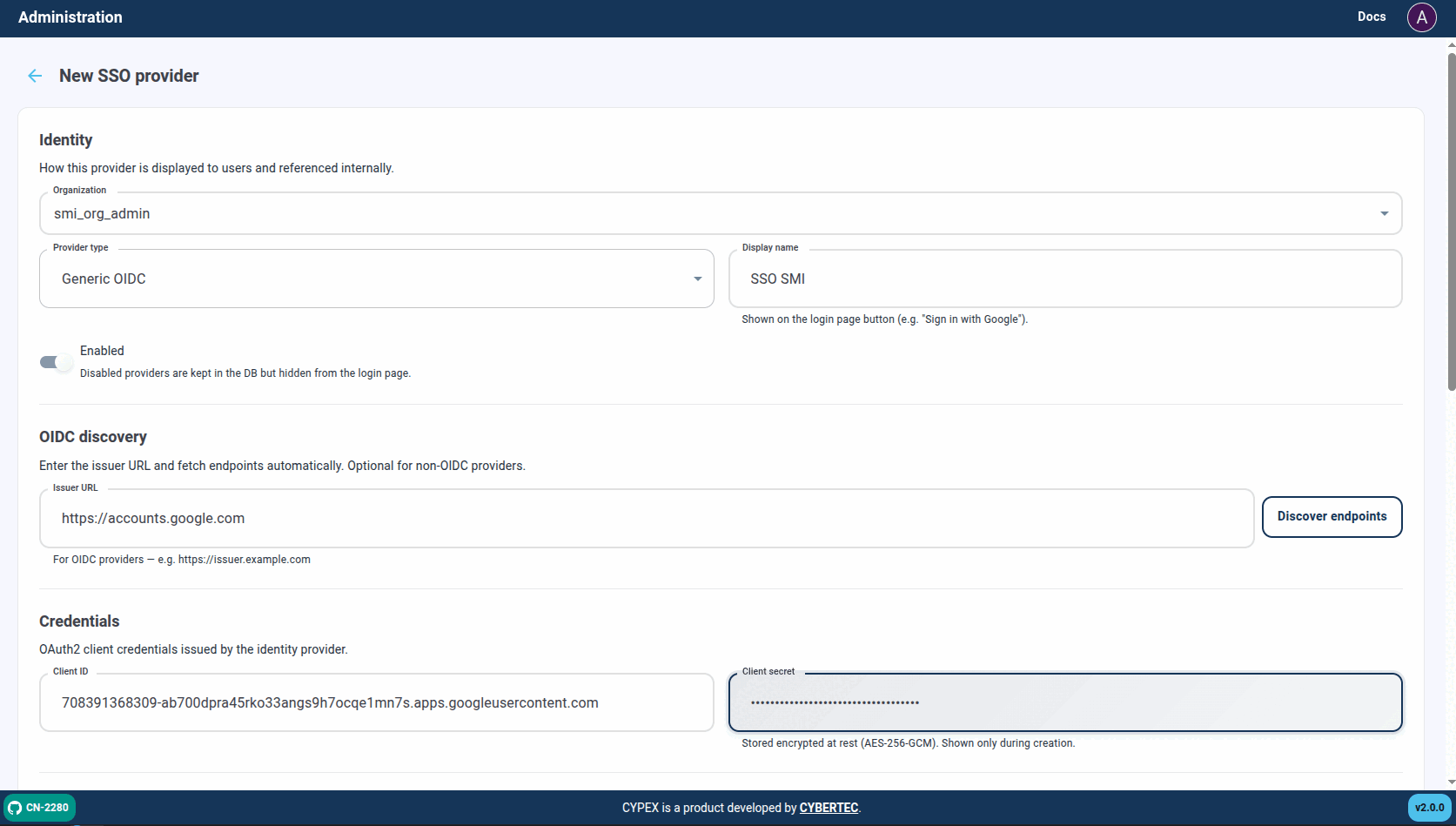

New SSO provider — filled example

Client ID and Client secret are OAuth2 credentials issued by the IdP's own console; the secret is AES-256-GCM encrypted at rest and never shown again after Create provider.

Clicking Create provider sends:

POST /sso/providers
{
  "organizationId": "1",
  "providerType": "oidc",
  "providerName": "SSO SMI",
  "issuerUrl": "https://accounts.google.com",
  "clientId": "<client-id>",
  "clientSecret": "<client-secret>"
}

→ 201 Created
{ "success": true, "provider": { "id": "<id>", "providerName": "SSO SMI", "isActive": true, ... } }

The provider now appears in the list, Active:

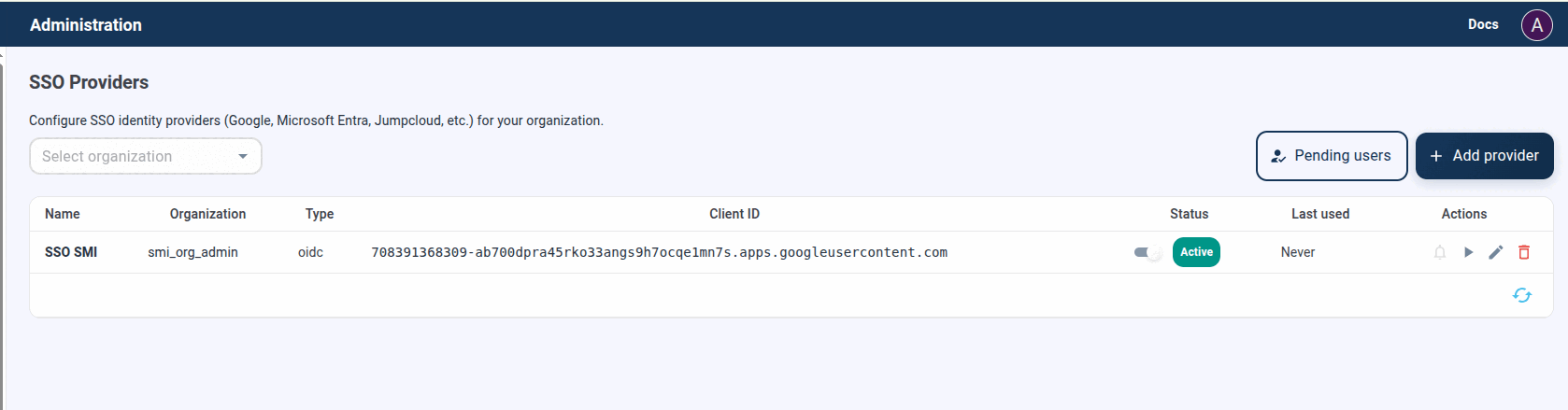

SSO Providers — list

Status, Last used, and row actions (test, view, edit, delete) per provider.

Click the row’s test action any time to dry-run the configuration end to end — it re-fetches discovery and reports per-endpoint status (authorization_url, token_url, userinfo_url, jwks_url, client_credentials, oidc_discovery) without touching a real user session.

On the CYPEX login page, local username/password stays available. Selecting the organization reveals its provider button:

Login — pick the organization

The SSO button only appears once an organization with an active provider is selected.

Login — provider button

One button per enabled provider for that organization.

Clicking it hands off to the IdP’s own login/consent screens — CYPEX has no control over this part of the flow, and neither the login form nor the consent screen ever sees the other’s credentials:

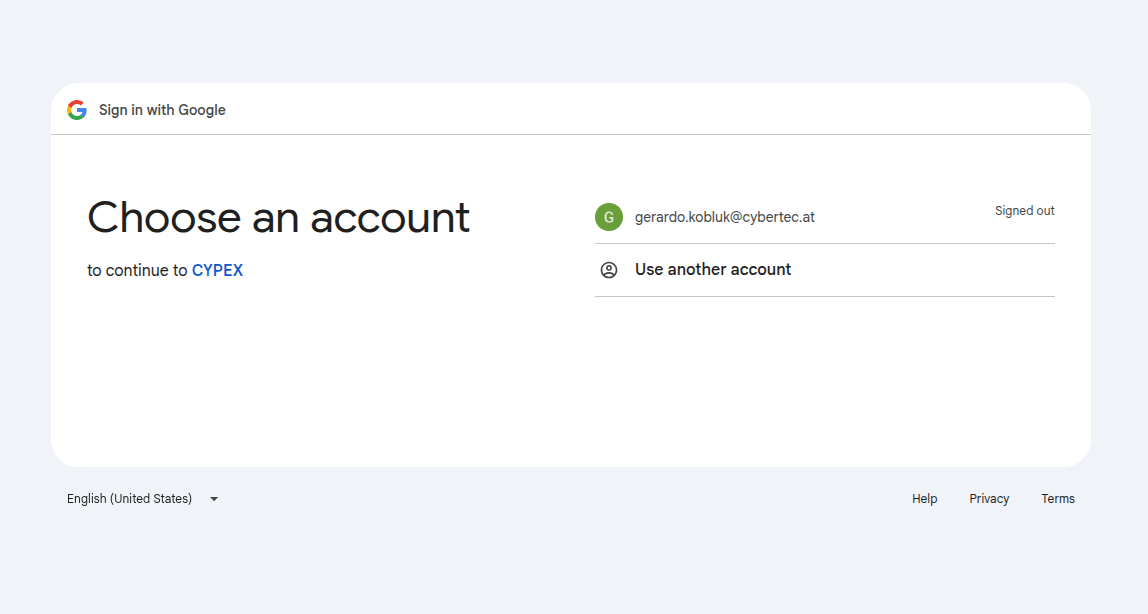

IdP — choose account

The identity provider's own account chooser, shown here for Google. Nothing on this screen is CYPEX UI.

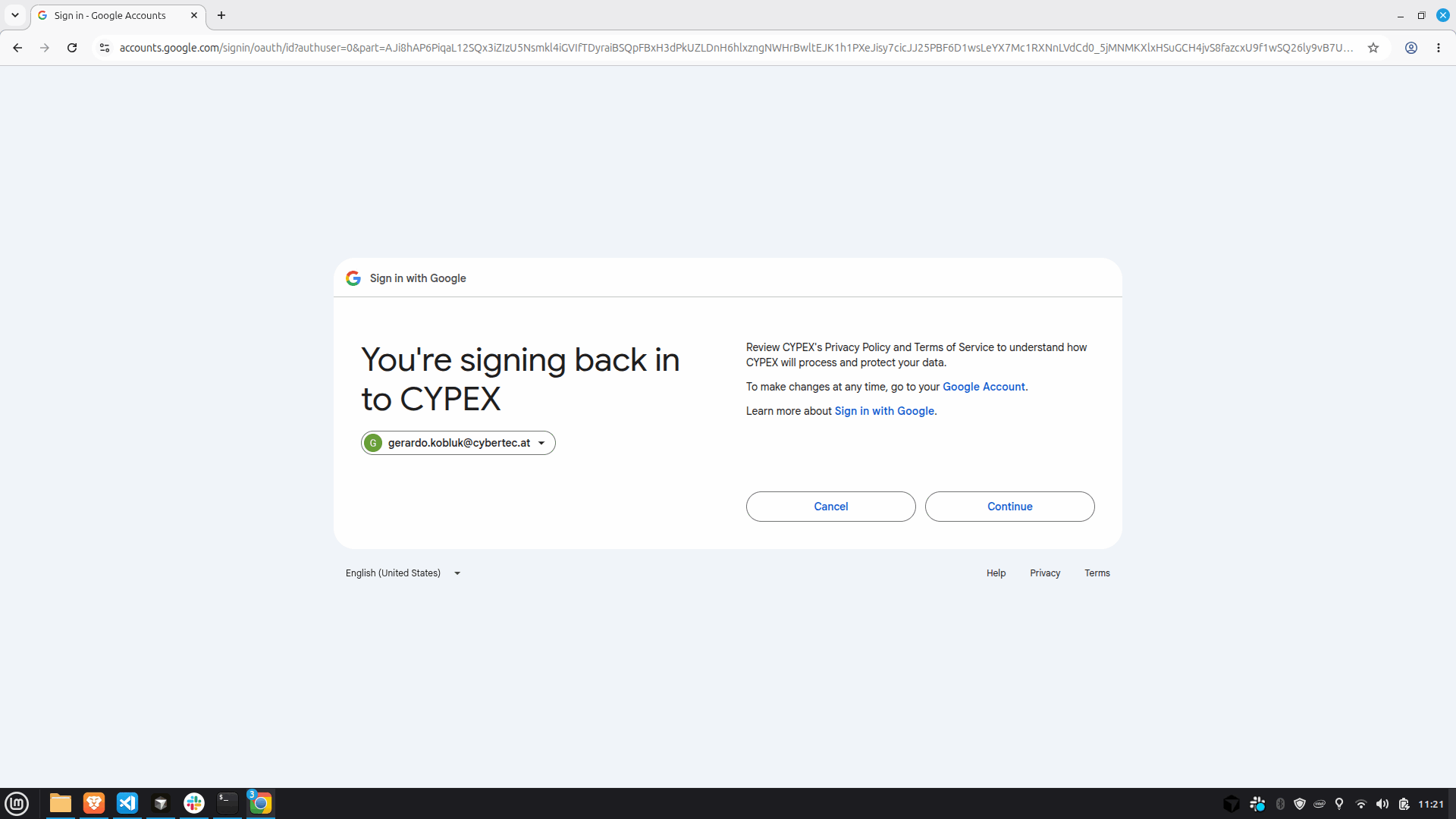

IdP — consent

Standard OAuth2 consent. Continue redirects back to CYPEX's callback URL with an authorization code.

Under the hood this is a PKCE-bound exchange, not a bare authorization-code redirect:

1. The SPA generates a 32-byte random verifier, derives challenge = base64url(SHA-256(verifier)), and calls GET /auth/oidc?provider_id=<id>&code_challenge=<challenge>. The gateway stores {state, code_challenge} in Redis (10-minute TTL by default — configurable via the sso_oauth_state_ttl_seconds platform setting) and redirects to the IdP.
2. The IdP redirects back to /auth/oidc/callback?code=…&state=…. The gateway exchanges the code for the user’s profile, stashes it in Redis under a one-shot opaque exchange_code (60-second TTL), and redirects the browser to /sso-callback?code=<exchange_code>. No database write and no JWT happen at this point — the callback URL is publicly reachable, so provisioning can’t be triggered by a forged callback alone.
3. /sso-callback posts { code, code_verifier } to POST /auth/sso/exchange. The gateway atomically consumes the Redis blob, constant-time-compares SHA-256(verifier) against the stored challenge, and only then runs the user-provisioning step and mints tokens.

Info

PKCE is enforced per-provider (requirePkce, default true) — the steps above are what a new provider gets out of the box. A provider explicitly configured with requirePkce=false (a legacy-compatibility escape hatch, not the default path) skips step 3’s verifier check entirely.

This provider has no t_sso_role_mapping rule yet, so the brand-new identity is parked, not signed in:

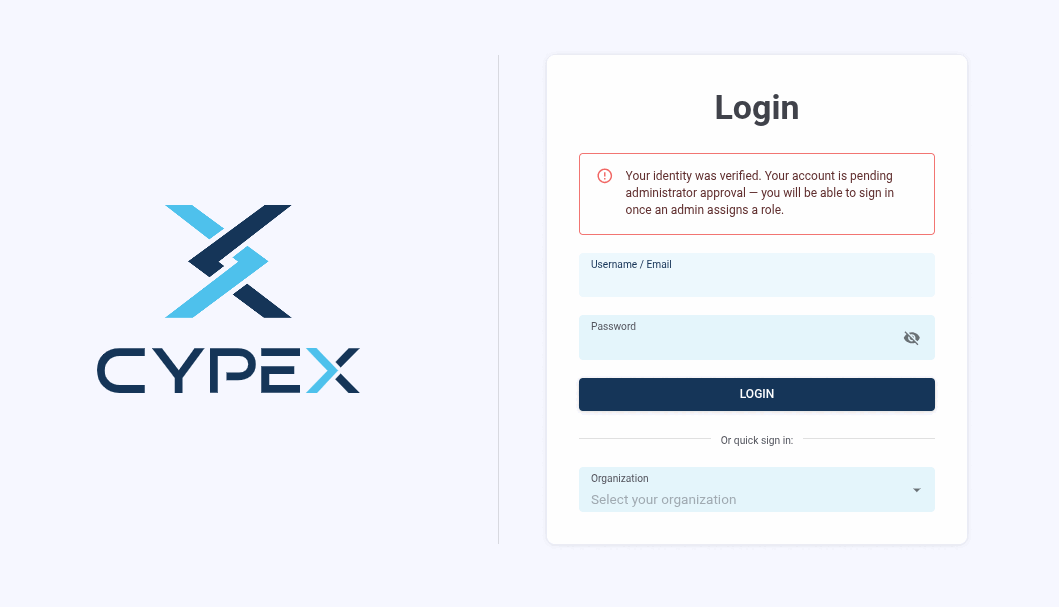

Login — pending approval

"Your identity was verified. Your account is pending administrator approval" — the IdP round-trip succeeded; CYPEX access did not.

An admin sees it under Users → Pending SSO:

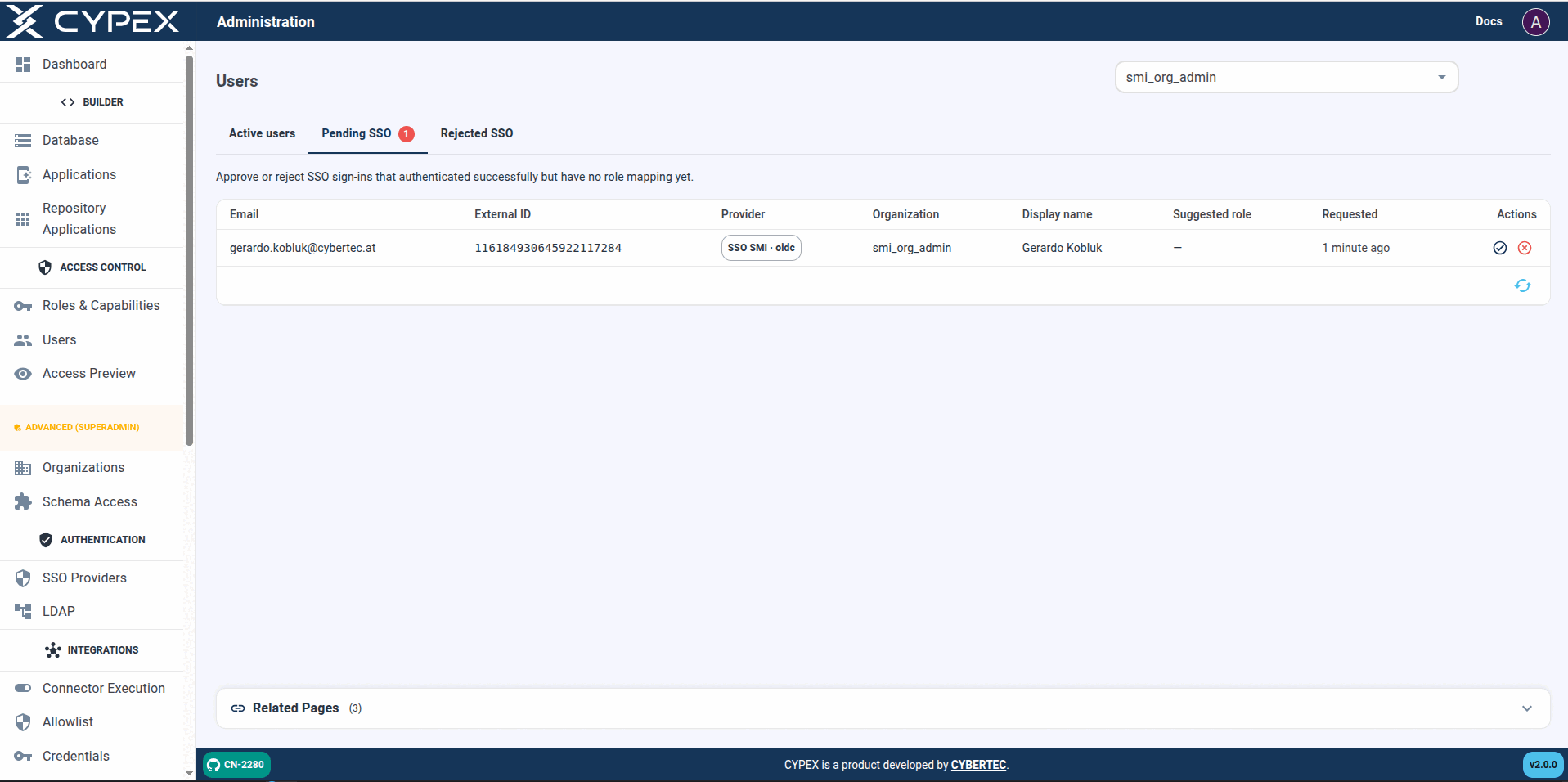

Users — Pending SSO tab

Email, external ID, provider, organization, a suggested role (when one can be derived), and how long ago the request came in.

Rejecting instead of approving, re-opening a rejected identity, and the audit trail each action leaves are covered in full on Pending and rejected users.

PATCH /sso/user-mappings/:id/approve
{ "cypexRole": "smi_org_admin" }

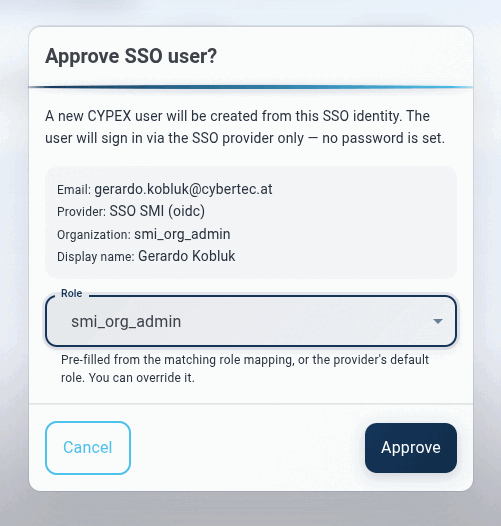

Approve SSO user?

Role is pre-filled from a matching t_sso_role_mapping rule, or the provider's default_role as a fallback hint — always editable before approving.

Approving always provisions a fresh CYPEX user from the captured external profile — this identity has never existed in CYPEX before. The user signs in via the SSO provider only; no password is ever set for it. On the next attempt, the same identity signs straight in and lands on the dashboard:

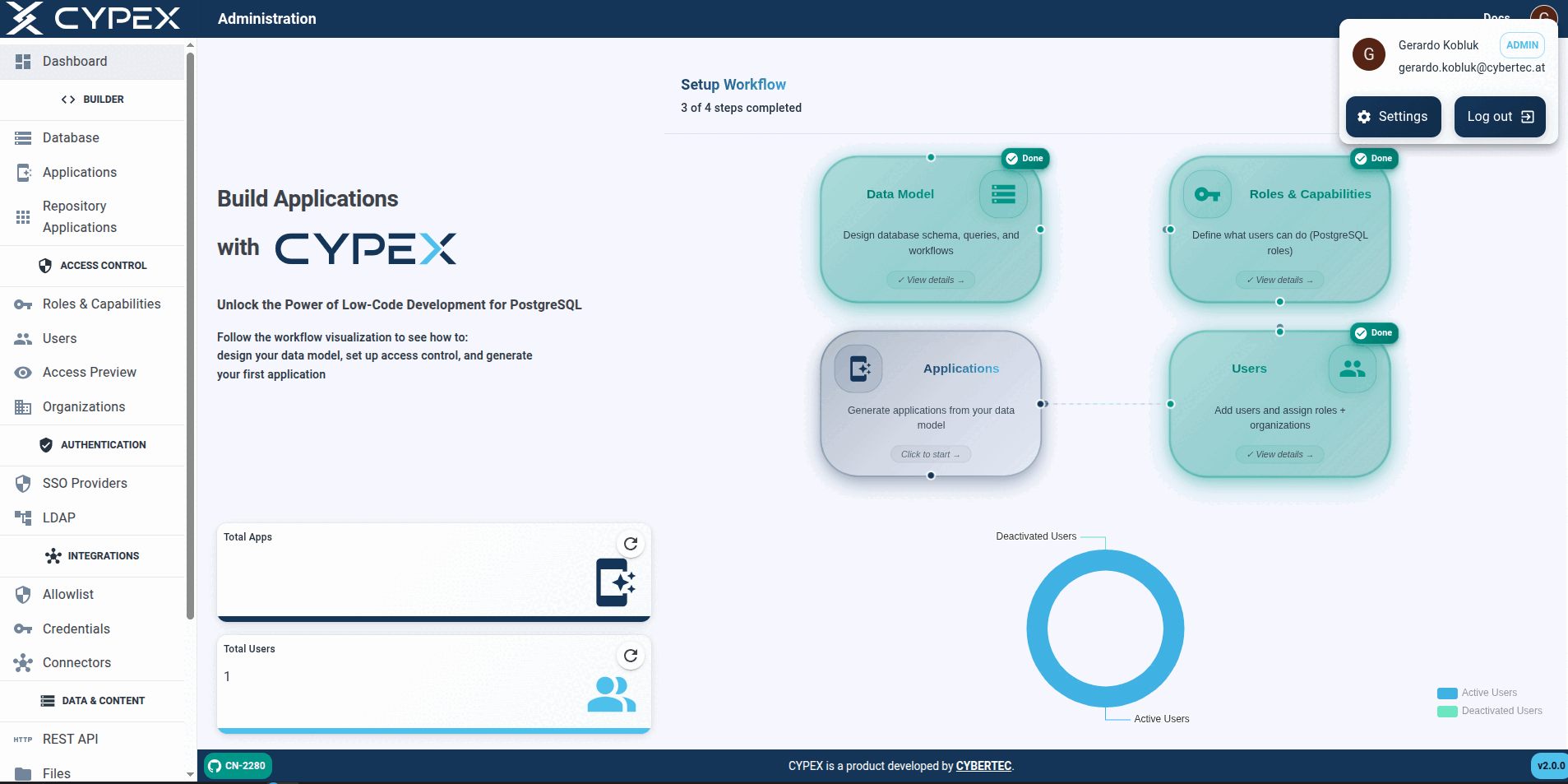

Dashboard — after SSO sign-in

Signed in as the newly-provisioned user, role badge in the top-right matching the role chosen at approval.

An SSO-issued token is not a special or reduced token — the exchange step uses the same JWT minting path as the rest of the platform, so it carries the identical claim set already documented in Organizations — The JWT tenant claim:

Warning

There is no separate tenant_id claim in CYPEX. org_id is the tenant identifier — it carries the organization’s bigint id, not a UUID, and it is the only claim RLS policies filter rows on. The gateway API transports the id as a JSON string; PostgreSQL casts it back to bigint inside the policy helpers. A provider’s own IdP may call its tenant-scoping claim something else (Entra’s tid, for instance) — that claim is read during provisioning to help resolve group/role mappings, but it is never itself forwarded into the CYPEX JWT or read by an RLS policy.

Nothing about this propagation path is SSO-specific: once the token is minted, PostgREST and every RLS policy treat it exactly like a token from local username/password login. SSO’s entire job is producing a token with the right org_id/role, once, at exchange time — see Organizations — How the JWT reaches PostgreSQL for the full request-time trace (SET LOCAL request.jwt.claims → the four RLS helper functions → row-filtered policies).

Preview a provider’s endpoints before saving (no persistence):

POST /sso/providers/discover
{ "issuerUrl": "https://accounts.google.com" }

→ 200 OK
{
  "success": true,
  "endpoints": {
    "issuerUrl": "https://accounts.google.com",
    "authorizationUrl": "https://accounts.google.com/o/oauth2/v2/auth",
    "tokenUrl": "https://oauth2.googleapis.com/token",
    "userinfoUrl": "https://openidconnect.googleapis.com/v1/userinfo",
    "jwksUrl": "https://www.googleapis.com/oauth2/v3/certs",
    "endSessionUrl": null
  }
}

Dry-run an existing provider’s configuration:

POST /sso/providers/<id>/test

→ 200 OK
{
  "success": true,
  "provider_id": "<id>",
  "test_results": {
    "authorization_url": "OK",
    "token_url": "OK",
    "userinfo_url": "OK",
    "jwks_url": "OK",
    "client_credentials": "OK",
    "oidc_discovery": "OK"
  }
}

client_secret is never present in any of these responses, including to the admin who owns the provider — after POST /sso/providers returns 201, the plaintext value is gone from every subsequent read.
